MAGNETIC PARTICLE INSPECTION (MT)

ac-electromagnetic-yokeAC Electromagnetic Yoke: S/n # 2694

The Y-1 is an AC electromagnetic yoke and the new generation of light weight, ergonomically designed yokes that improve job performance and productivity by reducing operator arm and wrist fatigue when testing in tight, confined and overhead areas. Provides a portable means of creating AC magnetic fields for the detection of surface indications during magnetic particle testing.

Lightweight, less than five pounds, and ergonomic with a molded grip and trigger on/off switch, the Y-1 has impact and chemical-resistant construction. Includes a robust strain-relieved ten-foot cord and carrying grommet for convenience in field use.

Applications

Defect location: Surface

Benefits & Features

  • Ergonomic, light-weight design
  • Soft-grip, angled body for better positioning
  • Exceeds ASTM lifting specifications
  • Steel shields for leg protection
  • Durable rugged construction
  • Oil and abrasion resistant power cord
  • Individual serial number for each yoke

Specification: ASME BPVC, ASTM E709, ASTM E1444, ASTM E3024

Ideal for:

  • Field testing
  • Difficult to reach areas
  • Spot inspections
  • In-service inspections
  • Weld inspection

Defect examples:

  • Seams
  • Tears
  • Shrink cracks
  • Grinding cracks
  • Quenching cracks
  • Fatigue cracks

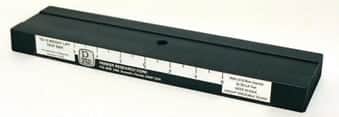

Particle Test Bar

Magnetic Particle Test Bar: S/N #17880

Test bar contains coarse and fine surface and subsurface defects in both directions. Meets or exceeds most industrial and military standards for artificial test specimens.

Specifications

  • ASME BPVC
  • ASTM E709
  • ASTM E1444

pie-gaugePie Gauge:

The magnetic particle Pie Gauge is used as an aid in determining the direction of magnetic fields for detection of discontinuities in ferrous metals.

Specifications

  • ASME BPVC
  • ASTM E709
  • ASTM E1444
Visible Light Meter

Visible Light Meter: S/N# 160202896

Measures visible light in foot-candles or lux

The Visible Light Meter accurately measures visible light in either foot-candles or lux and includes a permanently affixed visible light sensor specially constructed to measure visible white light in the range of 400-760 nm for non-destructive testing.

Benefits

  • Photo diode sensor
  • 400-760 nm range for ASTM E2297
  • +/-5% accuracy for NADCAP requirements
  • Accurately measures visible white light emission
  • Range selection 0 to 2,000 ft-candles / 0 to 20,000 lux
  • Adjustable digital readout ranges: 20, 200 & 2,000 ft-candles or 200, 2,000 & 20,000 lux

uv-a-light-meterUV-A Light Meter

Measures UV-A Light Irradiance

The UV-A Meter is a compact, rugged, easy to operate, digital radiometer for measuring and calibrating UV-A black light sources used in fluorescent penetrant testing and fluorescent magnetic particle inspections for non-destructive testing.

Benefits

  • 320-400 nm range for ASTM E2297
  • +/-5% accuracy for NADCAP requirements
  • Accurately measures ultraviolet light emission from UV-A lamps
  • Low battery warning
  • Range selection options: x1, x10, x100 and x1,000
  • Data holding capabilities
  • UV-365 sensor (320–400 nm)
  • Back-lit 4-digital LCD display

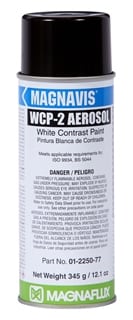

White Contrast Paint

WCP-2:  provides a high contrast background to improve probability of detection and sensitivity during visible magnetic particle inspections. This bright, white contrast paint is applied prior to inspection so when non-florescent / colored magnetic particles are applied, the indications appear clearly against the opaque white background.

WCP-2 can be used with all types of colored and visible mag particles, including 7HF or 7C Black wet method particles, or #2 Yellow#8A Red or #3A Black dry method magnetic powders.

Benefits

  • Provides good background contrast
  • Fast drying
  • Convenient, ready to use formula

Specifications: ISO 9934

Applications Ideal for:

  • Field testing
  • Spot inspections
  • In-service inspections
White Contrast Paint

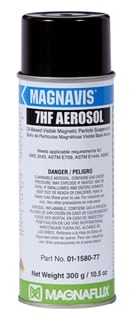

7HF

7HF

7HF is a highly-sensitive oil-based magnetic particle suspension aerosol for nonfluorescent (visible) wet method magnetic particle testing. 7HF provides clear, strong indications and are ideal for locating fine and medium discontinuities on finished parts. It is ideal for field testing, spot inspections and places where bulk processing is impractical.

7HF is often used with WCP-2 white contrast paint to improve contrast and inspection sensitivity. This process is ideal for remote inspections of tubing, piping, and large structures.

Benefits

  • Clear indications under visible light
  • Heavy particle buildup for quick detection
  • Great particle mobility
  • Protects parts and equipment against corrosion
  • Broad spray pattern provides even surface coverage over large areas
  • Superior surface wetting ensures higher probability of detection

Specifications

  • AMS 3043
  • ASTM E709
  • ASTM E1444
  • ASME
  • Boeing PS-21201
  • ISO 9934
  • MIL-STD-2132
  • NAVSEA 250-1500-1

Applications: Defect location: surface and slightly subsurface

Defect examples:

  • Inclusions
  • Seams
  • Shrink cracks
  • Tears
  • Laps
  • Flakes
  • Welding defects
  • Grinding cracks
  • Quenching cracks
  • Fatigue cracks
